| Specification | |||
| Camera IP input support | 32CH | ||
| Video | Resolution |
|
|
| Recording Bandwidth | Input | 640M | |
| Output | 640M | ||
| Network Bandwidth | AI off | Access: 256 Mbps, Storage: 256 Mbps, Forward: 256 Mbps | |
| AI on | Access: 160 Mbps, Storage: 160 Mbps, Forward: 160 Mbps | ||
| Performance | |||
| Live/Playback | Compression | Audio: G.711A/G.711U Video : H.264/H.265/H.264+/H.265+/MJPEG |
|
| Frame rate | 4K:240fps 4MP:480fps 2MP:960fps |
||
| Event | MD(Sensitivity Level 1~8) | ||
| Videlo loss | |||
| Beep, Email, Push notification to Mobile APP |
|||
| Playback function | Fast forward / backward (2x, 4x, 8x,16x) | ||
| Slow forward (1/2x, 1/4x, 1/8x,1/16x) | |||
| Playback | Max 16CH playback | ||
| RAID | RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 | |
| Fisheye | Support | ||
| UI/Monitoring | Local | UI5.0 | |
| WEB | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
||
| Mobile viewer | Rxcamview | ||
| AI | Face Detection | ||
| Pedestrian Detection | |||
| Vehicle Detection | |||
| Cross Counting | |||
| Heat Map | |||
| Crowd Density Detection | |||
| Perimeter Intrusion Detection | |||
| Line Crossing Detection | |||
| Queue Legth Detection | |||
| License Plate Detection | |||
| Rare Sound Detection | |||
| Interface | |||
| P/W Reset | YES | ||
| Monitors | HDMI | 2 （1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080 , 2560*1440, 3840*2160/7680*4320/EDID）Async out *If the output resolution of HDMI 1 is set to 8K, HDMI 2 will be disabled. |
|
| Ethernet | 2 RJ45 1000 Base-T | ||
| USB | USB2.0*1(front) USB3.0*2(rear) |
||
| Audio out | 1 | ||
| E-sata | 1 | ||
| HDD | 8 SATA HDD, up to 18TB | ||
| Line in | 1 | ||
| RS485 | 1 | ||
| Alarm Input/out | 16 in /4 out (channels) | ||
| General | |||
| OSD Language | English/French/Spanish/Portuguese/German/Italian/Greek/Danish/Finnish/Russia/Hebrew/Turkish/Bulgarian/Arabic/Korean/Japanese/Thai/Hindi/Romanian/Dutch/Polish | ||
| Mechanical design | Dimension (WxDxH) | 440*460*89mm | |
| Electrical | Input Voltage/Current | ATX 250W | |
| Power consumption (excluding hard disk) | 8W | ||
| Environmental | Operating Temperature/Humidity | Temperature : -10°C~+50°C (14°F ~ 122°F) Humidity : Less than 90%RH |
|

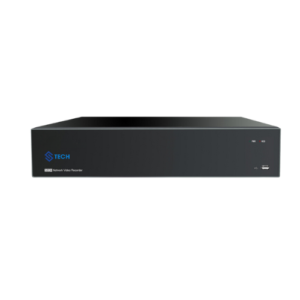

ST-N1032PC-EHL
- Support for 32 channels of IP camera input
- Support intelligent analytics such as facial recognition, pedestrian and vehicle detection, cross counting, heat map, crowd density detection,…
