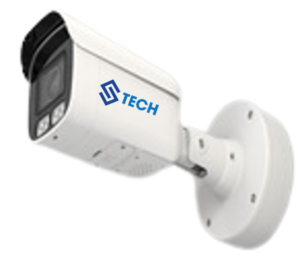

ST-CH394A2MIG-F

Model	ST-CH294A2TU-F	ST-CH394A2MIG-F
Imaging Device	1/1.8″
Effective Pixels	4MP 2688(H)×1520(V)
Min. Illumination	Color 0.0005 Lux @（F1.0, AGC ON）; B/W 0 lux @ IR ON
Lens Type/Focal Length	Fixed(M16)/3.6mm
Max. Aperture Ratio	F1.0
Angular Field of View	Horizontal:96°, Vertical: 51°, Diagonal:115°
Min. Object Distance	0.2m
IR LED	N/A
Warm Light	2
Red Blue Light	2（1 Red&1 Blue）
WarmLight Viewable Distance	Up to 20m
Wide Dynamic Range	WDR
Image Setting	Full Color Mode
White Balance	Auto/Manual
Electronic Shutter Speed	1/5 ~ 1/20000s
On-Board Storage	Micro SD slot, up to 256GB
Audio	Built-in microphone & Speaker
Hardware Reset	Yes
Smart Feature	Face Recognition, Pedestrian & Vehicle, Line Crossing, Object Detection, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound, Intrusion, Region Entrance, Region Exiting
Ethernet	RJ45(10/100BASE-T)
Video Compression Format	H.265/H.265+/H.264/H.264+/MJPEG
Max.Resolution	4MP(2688×1520)@30fps
Video Quality Adjustment	256Kbps ~ 8Mbps
Protocol	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Application Programming Interface	ONVIF (Profile S/G/T/M)
Operating Conditions	-35°C ~ +60°C/ 90% RH
Protection	IP67
Power	TU: DC12V: max.4.5W, PoE: max.5.7W	MIG: DC12V: max.4.3W, PoE: max.5.4W
Material	Metal
