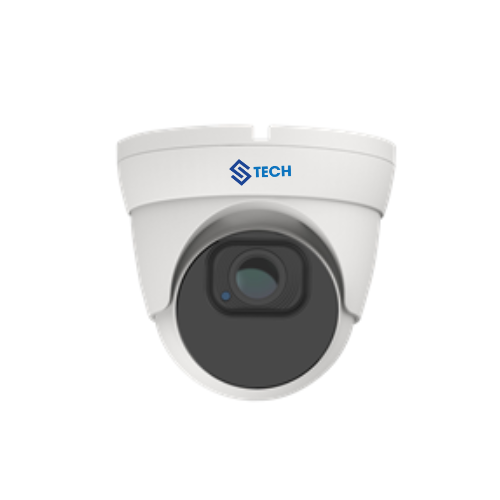

| Model name | ST-CH322M6MCA-Z | |
| Design |
|
|
| Video | ||
| Imaging Device | 1/2.7″ | |
| Effective Pixels | 2MP 1920(H)×1080(V) | |
| Scanning System | Progressive CMOS | |
| Min. Illumination | Color 0.006lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON | |
| Lens Type | ||
| Focal Length (Zoom Ratio) | 2.8-12mm | |
| Max. Aperture Ratio | F No. 1.8(W) ~ 3.3(T) | |
| Angular Field of View | H:107°（W）-35°（T）V:54°（W）-20°（T）D:133°（W）-40°（T） | |
| Min. Object Distance | 1.2m（W/T） | |
| Lens Type | Auto/ Manual(Ø14) | |
| Operational | ||
| IR Viewable Length | Up to 45m | |
| Camera Title | On/Off | |
| Day & Night | IR cut filter with auto switch（Day/Night/Auto/Image/Schedule） | |
| Backlight Compensation | Off/On (5 Zone) | |
| Wide Dynamic Range | DWDR | |
| Digital Noise Reduction | 3D DNR | |
| Motion Detection | Off/On (8 Level) | |
| Privacy Masking | Off/On (4 Zone, Rectangle) | |
| Gain Control | Auto | |
| White Balance | Auto/Manual | |
| Electronic Shutter Speed | 1/5 ~ 1/20000s | |
| Mirror | Flip/Rotation | |
| On-Board Storage | Micro SD slot, up to 256GB | |
| Alarm | NA | |
| Audio | 1 input (RCA), 1 output (RCA) | |
| Hardware Reset | Yes | |
| Smart Feature | Easy installation with Direct IP NVR | |
| Network | ||
| Ethernet | RJ45(10/100BASE-T) | |
| Video Compression Format | H.265/H.264 | |
| Resolution | Main Stream &30fps 1080P(1920×1080) Sub Steam &20fps VGA(640×480) |
|
| Video Quality Adjustment | 256Kbps ~ 4Mbps | |
| Bitrate control method | CBR/VBR | |
| Streaming Capability | Dual-Stream(Main/Sub) | |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
|
| Web browser | IE10/11 | |
| Security | complicated password;Authenticated username and password | |
| Streaming Method | Unicast/Multicast | |
| Application Programming Interface | ONVIF | |
| Environmental | ||
| Operating Conditions | -35～+60°C/less than ≤ 90% RH | |
| Ingress Protection | IP67 | |
| Electrical | ||
| Input Voltage / Current | DC12V/POE(IEEE802.3af Class 2) | |
| Power Consumption（IR OFF） | 1.5W-2.5W | |
| Power Consumption（IR ON） | 5.5W-7.5W | |
| Mechanical | ||
| Material | Metal | |
| Dimensions (HxWxD) | 135.56*135.56*127mm | |
| Weight | 821g |
